Varilinear Gen II Led Linear High Bay Light

VariLinear Gen II LED linear high bay light could be used in warehouses, corridors, indoor parking lots, shopping malls, and exhibition halls. The heat sink uses aluminum-stretched technics and the lens use plastics-extrusion technics, which allow the length of them could be customized at request without extra cost. It improves cost performance and competitiveness in the market. The heat dissipation uses AL6063 material with a good ability of heat conduction. All at once, the cooling fins are wrinkle design which increases the contact area with air for heat dissipation, while expanding the space for convection of heat. It ensures the heat sink a superheat dissipation. Both end caps of VariLienar Gen II are friendly hollow-out, which could discharge the ash and ponding from the heat sink easily

  • Lens PMMA material, excellent transparency;Low UGR design, UGR<25; Assymetric light distribution.

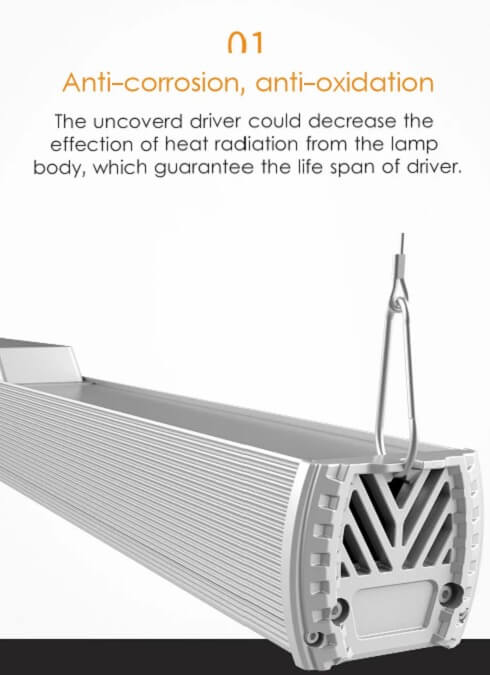

  • Anti-corrosion, anti-oxidation. The heat sink and end cap are powder coating.
  • Long lifespan driver.
  • Easy to clean up. Both end cap of Varilinear GEN II are friendly hollow-out , which could discharge the ashes and ponding from the heat sink easily.
or
  • Get Specification

Accessories

Varilinear Gen II-ACCESSORIES

General lnformation

  • 1. LED Type : Samsung/ Lumileds
  • 2. Light Efficacy : 130lm/W
  • 3. CCT : 4000K/ 5000K/ 6500K
  • 4. CRI : 80
  • 5. LED Lifespan : [email protected] 25℃
  • 6. Power Supply : Osram/ Inventronics
  • 7. Type of Driver : Non-isolated/ Isolated
  • 8. Driver efficiency : 91.5%/ 92%/ 93%/ 94%
  • 9. Protection class IEC : Class I
  • 10. Warrany : 5 Years
  • 11. Certificate : CE, CB, RoHS

Available to customize the length and power

The heat sink use aluminum-streched technics and the lens use plastics-extrusion technics, which allow the length of them could be customized at request without extra cost. It improve the cost performance and competitiveness in the market.

PRODUCT SIZE CHART(unit: mm)

G2-100W
G2-150W
G2-200W
