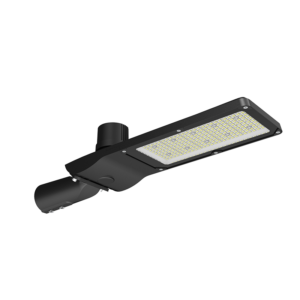

Skylight Gen III Series LED Street Light
Description
The Skylight Gen III LED street light replaces traditional halogen, HID and sodium street lights, providing dramatically improved energy efficiency and a higher quality of light. These lights also feature a dusk till dawn photocell for maximum energy efficiency and longer service life.
This is a 100W LED street light that projects 18,000 lumens of highly energy efficient LED illumination for streets and roadways. This outdoor LED light is the equivalent of 240W HID street lights.
Features
- Smooth surface, not easy to accumulate dust.
- Instant on/ off; No UV/ flickering.
- Integrated design for lens and heat sink.
- Proper lens specially designed for Type II light pattern.
- The horizontal direction of installation can be adjusted ±15 degrees, and it can also be installed vertically;Mounting head diameter 60mm,42/76mm optional.
- ADC12 die-casting material enables better heat dissipation.
- Stylish design with through-hole, better for air convectoin.
- .ies/. ldt files are available.
- Smart control, NEMA, ZHAGA socket optional.
- 500hrs salty spray or higher can be customized.
Up to 180Im/W
10KV
IP66
IK08
Dimming Control
Microwave Sensor
*Product Specifications
Wattage
20W/40W/70W/100W
Light efficiency
150lm/W, 180lm/W
Beam angle
Type II 150deg*70deg
Lumen Output
3,200 - 18,000 lm
Warranty
5 years
Certification
CE, CB, RoHS, ENEC, ErP
Accessories
NEMA Photocell
Protection wire
NEMA Receptable (5Pin)
Shorting Cap
Applicable size: Ø60mm Applicable size: Ø60mm
Surge Protector
NEMA Receptable (3Pin)
