Industrial LED High Bay Lights
- Wattage: 100W-77W-56W, 150W-120W-90W(85W), 200W-160W-120W(115W), 240W-180W-136W(135W) Lumen output selectable
- Lumen Output: 8,402 - 44,400 lm
- Beam angle: 90deg
- 0-10V Dimming Control
- 3CCT
- Microwave Sensor
- 3-Power-in-1
Super stable quality performance already sold more than 550,000pcs and only with less than 0.1% customers’ complaint
- Wattage: 75W / 100W / 150W / 200W / 240W
- Lumen Output: 10,125 - 45,600 lm
- 0-10V Dimming Control
- Microwave Sensor
50% less power consumption than traditional light sources.
- Wattage: 100W / 150W / 200W / 240W
- Lumen Output: 12,600 - 44,400 lm
- 0-10V Dimming Control
- 1-10V Dimming Control
- DALI Control
- Bluetooth Module
- ZigBee Module
Competitive price and high performance provide possibility to achieve high yield ROI while fast delivery time fulfils the urgent needs for budget projects with short time notice.
- Wattage: 100W / 150W / 200W
- Lumen Output: 12,500 - 25,000 lm
- Beam angle: 90deg
Unique hook design to make installation easier. Compatible for separated external driver design to reach longer lifespan.
- Wattage: 72W/96W/120W, 90W/120W/150W
- Lumen Output: 15,120- 28,500 lm
- Beam angle: 90deg
- 0-10V Dimming Control
- Microwave Sensor
50% less power consumption than traditional light sources.
- Wattage: 80W / 100W / 120W / 150W / 200W
- Lumen Output: 15,200 - 42,000 lm
- Beam angle: 110deg
- 0-10V Dimming Control
- 1-10V Dimming Control
- DALI Control
Power range 80W – 200W and light efficiency up to 210lm/W.
- Wattage: 36W / 40W / 60W / 80W / 100W / 120W / 125W
- Lumen Output: 4,320 - 16,250 lm
- Beam angle: 110deg
- 0-10V Dimming Control
- 1-10V Dimming Control
- DALI Control
Wide wattage range option from 36W to 125W, lumen from 4320lm~16250lm.
- Wattage: 100W / 150W / 200W
- Lumen Output: 13,000 - 26,000 lm
- Beam angle: A20(30*80deg), A26(60*90deg),A27(90*90deg)
- 0-10V Dimming Control
- Occupancy Control
The heat sink use aluminum-stretched technics and the lens use plastics-extrusion technics, which allow the length of them could be customized at request without extra cost.
- Wattage: 75W / 120W / 150W
- Lumen Output: 10,125 - 20,250 lm
- 1-10V Dimming Control
- Occupancy Control
- DALI Control
BatWing Gen II LED panel high bay light is with a punch-formed heat sink, particular slim and light and good heat dissipation. it’s applied to indoor area lighting such as work shop, warehouse and super market.
- Wattage: 100W / 150W / 200W
- Lumen Output: 16,500 - 33,000 lm
- Beam angle: 75deg
- DALI Control
- Occupancy Control
Edge series of super high lighting quality, specially designed to illuminate large indoor spaces creating a comfortable lighting environment plus saving more energy as a bonus.
- Wattage: 100W / 150W / 200W / 240W
- Lumen Output: 16,000 - 38,400 lm
- Beam angle: 55deg, 85deg
- 0-10V Dimming Control
- 1-10V Dimming Control
- DALI Control
- Microwave Sensor
Power range 100W – 240W and light efficiency up to 160 lm/W.
- Wattage: 100W / 150W / 200W / 240W / 300W
- Lumen Output: 13,000 - 57,000 lm
- Beam angle: 60deg, 90deg
- 0-10V Dimming Control
- 1-10V Dimming Control
- DALI Control
- Microwave Sensor
Ripple is with a super high light efficiency of up to 190 lm/W.
- Wattage: 100W / 150W / 200W
- Lumen Output: 13,000 - 30,000 lm
- Beam angle: 90deg
- 1-10V Dimming Control
- DALI Control
Wide range of lumen output package from 13,000lm up to 36,000lm.
- Wattage: 100W / 150W / 200W
- Lumen Output: 13,000 - 30,000 lm
- Beam angle: 90deg
- 1-10V Dimming Control
- Bluetooth Module
- ZigBee Module
Vista Larger light-emitting area. Superb heat dissipation to ensure a long life span.
- Wattage: 100W / 150W / 200W
- Lumen Output: 13,000 - 38,000 lm
- Beam angle: 60deg, 90deg, 110deg
- 0-10V Dimming Control
- 1-10V Dimming Control
- DALI Control
An ideal option for indoor/ outdoor use with superb heat dissipation ability combining the anti-corrosion and oxidantion resistance surface treatment.
- Wattage: 100W / 150W / 190W
- Lumen Output: 20,000 - 38,000 lm
China high bay lighting company’s Ripple E adopting the cutting edge technology of IC controller in the industry.
- Wattage: 80W / 100W / 150W / 200W / 240W
- Lumen Output: 15,200 - 42,000 lm
- Beam angle: 110deg
- 0-10V Dimming Control
- 1-10V Dimming Control
- DALI Control
- Bluetooth Module
- ZigBee Module

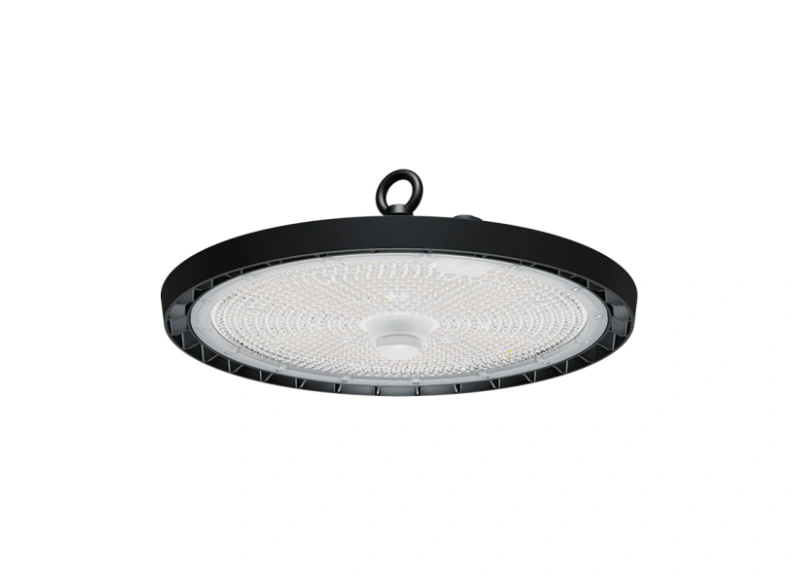

Halo is the best choice lighting solution with a motion sensor integrated to achieve maximum energy saving.
- Wattage: 60W-50W-43W-34W / 120W-110W-100W-90W-80W-70W-60W
- Lumen Output: 6,000 - 19,000 lm
- Beam angle: 30deg,60deg,90deg,40*80deg
- DALI Control
- 4-Power-in-1
- 7-Power-in-1
The luminaire can be customized with quick-connect, sensor, and emergency versions to cater to specific requirements.
- Wattage: 110W/150W/200W, 90W/120W/150W,60W/80W/100W
- Lumen Output: 9,000 - 30,000 lm
3-Power-In-1,an ideal solution to reduce your SKU
Customize LED High Bay Lights For Your Business? Contact US Now!
How your LED high bay light produce?
With a better understanding of the market and customers in the American and European region, our talented and creative design team will work alongside you to achieve business success.
Featured Projects
Category : Product : Time : Info : LED Stadium Light UFO Gen IV 2021.5 One of our partners in France...
Category : Product : Time : Info : LED Stadium Light Ripple plus 2019.12 LED high bay light for factory...
Previous Next Category : Product : Time : Info : LED Hign Bay Light UFO GEN IV 2020.3.20 led high bay...
Featured Blogs
Illuminating Innovation with the Power of Industrial LED High Bay Lights
Let’s step into the captivating world of industrial LED high bay lights. With a touch of playfulness and a dash of professionalism, this enchanting journey unveils the remarkable capabilities of these luminous marvels as they effortlessly brighten vast spaces and revolutionize the way we perceive industrial lighting.
So fasten your seatbelt and prepare to embark on a dazzling adventure that merges creativity with efficiency, showcasing how these high bay lights are reshaping the landscape of illumination.
What Are Industrial LED High Bay Lights?
Behold the mighty titans of illumination, the industrial LED high bay lights, masters of brilliance in vast, open realms. These enchanting fixtures, with a playful dance of photons and a touch of professional finesse, effortlessly paint vibrant strokes of light across warehouses, factories, and sprawling industrial landscapes.
Industrial LED high bay lights are specifically crafted lighting fixtures that excel in providing abundant, even illumination across expansive, unencumbered areas. Tailored for deployment in warehouses, factories, and comparable industrial environments, these luminaires boast exceptional brilliance and superior lighting efficacy. Engineered to meet the demanding requirements of such spaces, they ensure the provision of high-quality, uniformly distributed light.
What Are the Advantages of Using Industrial LED High Bay Lights?
If you’re seeking an exceptional lighting solution for your industrial environment, industrial LED high bay lights are a fantastic choice. These luminaires bring forth a plethora of advantages compared to conventional lighting technologies.
Energy Efficiency
Industrial LED high bay lights stand out for their remarkable energy efficiency. By utilizing cutting-edge LED technology, they consume significantly less electricity compared to conventional lighting alternatives. This translates into tangible benefits such as reduced energy costs and a smaller ecological footprint. With their ability to convert a higher proportion of energy into visible light rather than wasteful heat, these lights exemplify a sustainable lighting solution.
Optimal Illumination
A notable advantage of industrial LED high bay lights is their ability to provide bright and uniform illumination throughout expansive spaces. This consistent visibility enhances safety, promotes productivity, and fosters overall favorable working conditions. By eliminating dark spots and ensuring balanced light distribution, these lights create an environment conducive to efficient operations.
Extended Lifespan
LED lights offer a prolonged lifespan compared to traditional lighting options. This longevity translates into reduced maintenance and replacement expenses, making them an economically prudent choice in the long run. Industrial operations can proceed smoothly and cost-effectively by minimizing disruptions and downtime due to lighting failures.
Instantaneous Operation
LED lights offer the convenience of instant on/off functionality. With no warm-up time required, they provide immediate illumination upon switching on. This attribute proves particularly advantageous in industrial settings where prompt and reliable lighting is crucial for operational efficiency.
Robust Durability
Industrial LED high bay lights are engineered to withstand demanding conditions, making them highly durable and reliable. They exhibit resilience against shock, vibration, and temperature fluctuations, ensuring consistent performance even in harsh environments. This durability minimizes the need for frequent replacements, further contributing to cost savings.
Versatility and Control
LED technology allows for flexible control options, including dimming capabilities and programmable lighting scenarios. This versatility enables precise adjustments to light levels, promoting energy optimization tailored to specific requirements. The ability to fine-tune lighting settings enhances efficiency while providing a customizable lighting experience.
Heat Emission Reduction
LED lights generate minimal heat compared to traditional lighting options. This not only enhances safety by reducing the risk of burns but also alleviates the strain on cooling systems in industrial spaces. By minimizing heat emission, LED high bay lights contribute to a more comfortable and energy-efficient working environment.
Environmentally Conscious
LED lights are environmentally friendly as they do not contain hazardous substances like mercury, making them easier to dispose of responsibly. Their reduced energy consumption and longer lifespan also contribute to a reduced carbon footprint, aligning with sustainability goals and regulations.
What is the Lifespan of Industrial LED High Bay Lights?
The lifespan of industrial LED high bay lights varies depending on quality and usage conditions. Typically, they can last between 50,000 to 100,000 hours, equivalent to over 10 years of use. With their energy efficiency and longevity, industrial LED high bay lights offer a durable and sustainable lighting solution. They outperform traditional lighting options and require minimal replacements.
What is the Wattage Range of Industrial LED High Bay Lights?
Industrial LED high bay lights come in a wattage range of 100 to 1000 watts, offering flexibility to suit different lighting needs. The wattage directly influences the light output, with higher-wattage lights providing more illumination and lower-wattage lights offering a comparatively lower light output. Choosing the appropriate wattage ensures optimal brightness for the desired application.
When selecting an industrial LED high bay light, it’s crucial to factor in the size of the area to be illuminated and the desired light output. Larger spaces like warehouses often require higher-wattage lights, whereas smaller workshops may suffice with lower-wattage options. Matching the wattage to the specific needs ensures optimal lighting performance.
What is the Color Temperature Range Of LED High Bay Lights?
LED high bay lights offer a color temperature range of 3000K to 6000K, measured in Kelvin. Lower temperatures like 3000K provide a warmer, yellow light, while higher temperatures like 6000K emit a cooler, blue light. The most common choice is 5000K, a neutral white light suitable for commercial spaces. 4000K resembles natural sunlight, while 3000K offers a warm and inviting ambiance. Experience the perfect lighting solution with LED high bay lights.
How do I Calculate the Number of Industrial LED High Bay Lights Needed for My Space?
To determine the number of industrial LED high bay lights required for your area, consider these factors:
- Size of the space in square feet
- Desired light output in lumens
- Light distribution pattern of the selected industrial LED high bay lights
These parameters play a vital role in accurately calculating the optimal number of lights needed to achieve the desired illumination for your specific space.
To accurately calculate the number of industrial LED high bay lights for your space, keep these additional tips in mind:
- Ceiling Height: Consider the height of the ceiling, as lights are typically installed 15-20 feet above the floor. Adjust the number of lights if the ceiling is higher to maintain adequate illumination.
- Ambient Light: Assess the amount of natural light in the space. If there is ample natural light, you might require fewer lights to achieve the desired brightness.
- Activity Type: Take into account the specific activities planned for the space. Activities requiring high visibility, like manufacturing or assembly, may require more lights to ensure optimal illumination.
These factors will help you accurately determine the ideal number of industrial LED high bay lights for your space.
What is the Recommended Mounting Height for Industrial LED High Bay Lights?
For optimal performance, industrial LED high bay lights are typically recommended to be mounted at the height of 15-20 feet above the floor. This positioning ensures even distribution of light across the entire area.
However, if your ceiling exceeds 20 feet in height, adjusting the number of lights may be necessary to compensate for the greater distance between the lights and the floor. Alternatively, considering a different lighting solution, such as linear LED lights designed to deliver extended light coverage, might be advantageous.
How do I Select the Right Beam Angle for my Industrial LED High Bay Lights?
The beam angle of an industrial LED high bay light determines the width of the light beam, ranging from 30 to 180 degrees. It plays a crucial role in illuminating the desired space. A wider beam angle covers a larger area, while a narrower beam angle focuses on a smaller region.
When selecting an industrial LED high bay light, consider the size of the space and the desired light output. Larger spaces, like warehouses, benefit from wider beam angles, while smaller workshops may suffice with narrower beam angles. Tailoring the beam angle ensures efficient and effective illumination for your specific space.
Can Industrial LED High Bay Lights be Used in Hazardous Locations?
Certainly! Industrial LED high bay lights are suitable for use in hazardous locations and are often preferred due to their energy efficiency and durability compared to traditional lighting options. When using industrial LED high bay lights in hazardous locations, remember a few key points.
- First, opt for lights specifically designed and certified for hazardous areas by recognized testing organizations like Underwriters Laboratories (UL), ensuring compliance with safety standards.
- Second, ensure proper installation following the manufacturer’s instructions and safety guidelines for hazardous locations.
- Lastly, regular maintenance is essential. Perform inspections and cleaning to uphold the lights’ functionality and ensure they remain undamaged.
Considering these factors, industrial LED high bay lights can be safely and effectively utilized in hazardous environments.
How Do I Clean My Industrial LED High Bay Lights?
Regular cleaning is necessary to maintain the performance of your industrial LED high bay lights. Follow these steps:
- Power off: Ensure the lights are switched off before cleaning to prevent accidents.
- Remove dust covers: Take off the dust covers, allowing access to the bulbs and components.
- Clean bulbs: Gently wipe the light bulbs with a soft cloth. Avoid using harsh chemicals or cleaners that may harm the bulbs.
- Clean fixtures: Use a mild soap and water solution to clean the fixtures. Thoroughly dry them before reattaching the dust covers.
- Replace dust covers: Once the fixtures are clean, securely place the dust covers back.
- Power on: Finally, switch on the power to illuminate the lights.
Following these steps will help keep your industrial LED high bay lights clean and functioning effectively.
How Do I Properly Dispose of Industrial LED High Bay?
When it comes to disposing of industrial LED high bay lights, follow these steps:
- Consult local waste management: Contact your local waste management company for guidance on proper disposal methods.
- Unplug the lights: Ensure the lights are unplugged before handling them.
- Remove light bulbs: The light bulbs in industrial LED high bay lights contain hazardous materials requiring specific disposal methods.
- Recycle fixtures: Recycling the fixtures is a suitable option for industrial LED high bay lights.
- Hazardous waste disposal: Light bulbs should be disposed of at a dangerous facility.
How Do I Know If My Industrial LED High Bay Lights Are Compatible with My Existing Electrical System?
To ensure compatibility between your industrial LED high bay lights and your electrical system, consider the following factors:
- Confirm that the voltage of your industrial LED high bay lights matches that of your electrical system. If not, a transformer may be necessary to convert the voltage.
- Ensure that the current draw of the lights does not exceed the capacity of your electrical system. If the current draw is too high, upgrading the system might be required.
- Verify that the wattage of your industrial LED high bay lights is within the limits of your electrical system. If the wattage exceeds the capacity, an electrical system upgrade may be necessary.
- If your electrical system uses a ballast, check if your industrial LED high bay lights are compatible. Some lights require a specific ballast, while others can work with a standard one.
Can Industrial LED High Bay Lights Be Used in Cold Storage Facilities?
Certainly! Industrial LED high bay lights are indeed suitable for cold storage facilities due to their energy efficiency and durability compared to traditional lighting options.
Here are the benefits of using industrial LED high bay lights in cold storage facilities:
- Energy efficiency: LED high bay lights consume less energy, resulting in significant savings on energy costs.
- Longer lifespan: LED high bay lights have a much longer lifespan, reducing the frequency of replacements and saving on maintenance costs.
- Durability: LED high bay lights are highly durable and can withstand harsh environments, making them ideal for cold storage facilities.
- Low maintenance: LED high bay lights require minimal maintenance, resulting in reduced labor costs.
Finding the Best Sources for Industrial LED High Bay Lights
When it comes to purchasing industrial LED high bay lights, finding the right source is crucial to ensure quality products and a seamless experience. LEDLUCKY emerges as the ideal destination for all your LED lighting needs. With a reputation for excellence, LEDLUCKY offers a wide range of LED lighting products at competitive prices. Their commitment to quality is evident in their high-performance industrial LED high bay lights that deliver exceptional brightness and durability.
What sets LEDLUCKY apart is its comprehensive approach to customer satisfaction. Alongside its impressive product range, it provides a range of services, including installation, design, and maintenance. Their team of experts assists customers in maximizing the benefits of their LED lighting products, ensuring optimal lighting solutions tailored to specific requirements.
As a leading manufacturer and seller, LEDLUCKY prioritizes customer value by offering top-notch LED lighting products, competitive pricing, and dedicated services. It is the trusted choice for quality, reliability, and customer satisfaction when sourcing industrial LED high bay lights.
Wrapping Up!
The remarkable capabilities of industrial LED high bay lights are driving innovation in the realm of large-scale illumination. These lights offer unparalleled energy efficiency, durability, and superior lighting performance, making them a game-changer in various industries.
When finding the best supplier for industrial LED high bay lights, LEDLUCKY stands out as the ultimate choice. LEDLUCKY has established itself as a leading manufacturer and seller of top-quality LED lighting products. Their commitment to excellence is evident in the high standards of their products, ensuring customers receive reliable and long-lasting lighting solutions.
