TUBULAR LED TRIPROOF LIGHT

The Tubular series features smooth surface and seamless structure which eliminates the risks of accumulation of water, dust and bacteria. Thanks to the IP69k rated design, the Tubular series are strong enough to survive from the high pressure washing of water jet cleaner which makes it the ideal option specially for food factory where the wash-down process often occurs.

Smooth Surface Prevents From Bacteria Accumulation
Acid And Alkali Corrosion Resistance Surface Treatment
Watts: 20W, 35W, 50W
Lumen efficiency up to 140lm/W
IP69K & IK10
Various beam angles 120deg
5 years warranty
Wide range of lumen output package from 2,200lm up to 7,000lm
Suitabale for parking lots, corridors, underpass, call wash shops, food factory and livestock farms etc.

Overview

Tubular Series LED Triproof light

140lm/W

IP69K

IK10

20W, 35W, 50W

Smooth Surface Prevents From Bacteria Accumulation

The Tubular series features smooth surface and seamless structure which eliminates the risks of accumulation of water, dust and bacteria. Thanks to the IP69k rated design, the Tubular series are strong enough to survive from the high pressure washing of water jet cleaner which makes it the ideal option specially for food factory where the wash-down process often occurs.

Acid And AlkaliCorrosion Resistance Surface Treatment

The surface treatment of acid and alkali corrosion can be customized especially for livestock lighting or food processing factory lighting where it requires the usage of sanitiser or disinfect solution.

Suitable for parking lots, corridors, underpass, call wash shops, food factory and livestock farms etc..

Optional DALI Dimming Solution

DALI dimming solution is available on request especially for livestock lighting. The intelligent control could promote the fast growth of the animals by setting appropriate lighting time period and brightness.

Specification

Part No.	FK-TX20-06XX-TB		FK-TX35-12XX-TB		FK-TX50-15XX-TB
Power	20W		35W		50W
Voltage	220-240 VAC
CRI	Ra>80
PF	>0.92
Luminous efficiency	130lm/W	110lm/W	140lm/W	120lm/W	140lm/W	120lm/W
Luminous [email protected]	2,600lm	2,200lm	4,900lm	4,200lm	7,000lm	6,000lm
Beaming Angle	120deg, 130deg

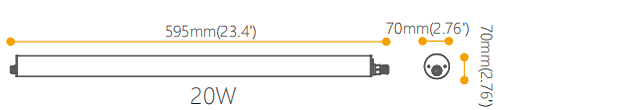

Dimension	Ø70*595mm		Ø70*1195mm		Ø70*1495mm
Operating temperature range	-30℃~50 ℃
Smart control options	Occupancy sensor / daylight sensor / 1-10V dimming / DALI
Color	Milky
Mounting options	Suspended / wall mounted
IP grade	IP69K
IES/LDT file	Available
