HALO LED HIGH BAY LIGHT

Halo LED high bay light is a solution with a motion sensor integrated to achieve maximum energy saving. The structure is designed to have great compatibility with DC input motion sensors available in the market, which could be hidden mounted to maintain the integrity of appearance. The ability to realize the best match of pricing and performance of Halo series highbay light allows us to directly replace the traditional industrial light such as HID lights and fluorescent lights.

Power watts 100W,150W, 200W, 240W
Lumen efficiency up to 110lm/W
Beam angle: 85deg, 55deg
4 steps McAdam Ellipse for better light consistency
Tool-free installation and maintenance
Optional built-in motion sensor
5 years warranty
Wide range of lumen output package from 11,000lm up to 26,400lm
Certificates: CE, CB, RoHS

Overview

Halo LED High Bay Light

A solution with motion sensor integrated to achieve the maximum energy saving

130lm/W

100W, 150W, 200W, 240W

UGR<25

Optional Built-in Motion Sensor

The structure is designed to have great compatibility with DC input motion sensors available in the market, which could be hidden mounted to maintain the integrity of appearance.

Tool-free Installation And Maintenance

With the aid of clips, the lens veil of halo series highbay can be locked on the heat sink without any tools, which facilitates the installation and maintenance in the future. Meanwhile, it is also convenient for customers to replace the lenses of different angles according to the actual needs on site.

Best Match of Pricing and Performance

The ability to realize the best match of pricing and performance of Halo series highbay light allows to directly replace the traditional industrial light such as HID lights and fluorescent lights.

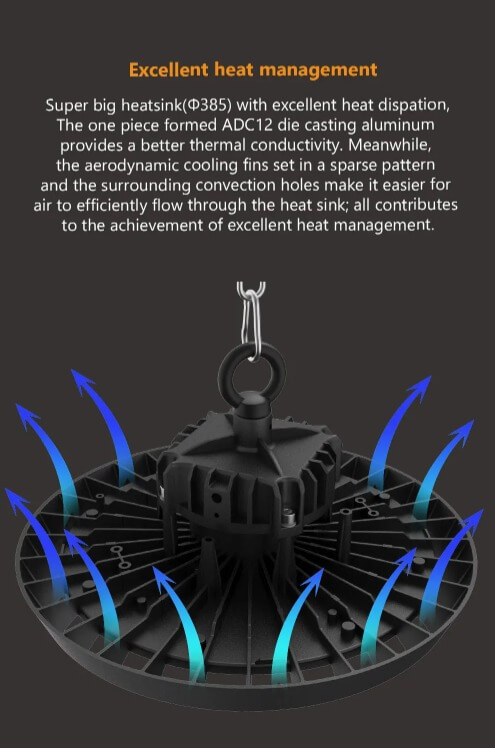

Excellent Heat Management

The one piece formed ADC12 die casting aluminum provides a better thermal conductivity. Meanwhile, the aerodynamic cooling fins set in a sparse pattern and the surrounding convection holes make it easier for air to efficiently flow through the heat sink; all contributes to the achievement of excellent heat management.

Specification

Model No.	FK-IX100-XXN-FH	FK-IX150-XXN-FH	FK-IX200-XXN-FH	FK-IX100-XXN-HH	FK-IX150-XXN-HH	FK-IX200-XXN-HH
Power Consumption	100W	150W	200W	100W	150W	200W
Luminous Flux	13,000lm	19,500lm	26,000lm	13,000lm	19,500lm	26,000lm
Efficacy	130lm/W
Correlated Color Temperature	4000K, 5000K, 6500K
Color Rendering Index	Ra80			Ra70
Beam Angle	55°， 85°
Fixture Color	Black
IP Rating	IP65
IK Rating	IK08
Mounting Option	Suspending /Ceiling Mounting/Wall Mounting
Operating Temperature	-30°C to + 45°C(-22°F to 113°F)
Warranty	5 years
Dimmable	Dimmable and Non-dimmable

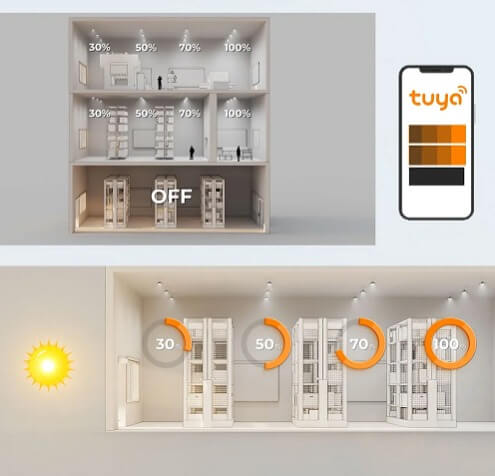

Intelligent Control	Occupancy/Dimming/DALI
Certificate	CB, CE, RoHS
